Enhancing Methanex Titan Cooling Tower: A Sustainable Reinforcement Solution
Methanex, a global leader in methanol production, is known for its relentless pursuit of operational excellence and adherence to industry best practices. At their facilities, they prioritize prompt problem-solving to ensure consistent performance and compliance with high standards. The Methanex Titan Cooling Tower, situated in the picturesque Caribbean region, is a robust structure built using reinforced concrete.
Addressing Structural Integrity at Methanex Caribbean Plant
This Methanex facility in the Caribbean underwent a comprehensive structural reinforcement project. During the first phase, engineers focused on a 10-foot by 50-foot area along the western wall of the cooling tower. Extensive spalling and concrete deterioration had set in here due to saltwater infiltration, leading to corrosion of the steel reinforcement and subsequent expansion. This caused spalling, exposing the corroded steel and accelerating the corrosion process. To determine the best course of action, HJ3 conducted an extensive survey to identify critical areas requiring immediate attention.
Empowering Structural Resilience: Phase One and Two Repairs
In phase two, the structural repairs were expanded to include 15 support columns on both the north and south walls of the cooling tower. These columns had suffered significant environmental damage from chemical exposure and local weather conditions. The assessment highlighted priority one exposed rebar and priority two structural cracks. Replacing them entirely would have been a massive project, involving significant material costs and downtime for the plant.
Swift and Efficient Repairs: Savings and Sustainability
HJ3 successfully completed both phase one and phase two within a total of four weeks, resulting in substantial cost savings for the Methanex plant—up to 50% less than what a full replacement would have cost.
Restoring Structural Integrity: How It Was Done
For phase one, HJ3 used CarbonSeal carbon fiber reinforcement to restore the 10-foot by 50-foot section of the cooling tower’s west wall to its original strength. Given the extent of spalling, deterioration, and delamination, preventing future steel reinforcement corrosion was crucial.
In phase two, HJ3 turned its attention to reinforcing 15 columns on the north and south walls. These columns showed exposed rebar and structural cracks that compromised their integrity. By operating on a dual 12-hour shift schedule, HJ3 completed each phase in just two weeks.
HJ3's Innovative Reinforcement Process
Both phases involved meticulous preparation of the concrete surface, adhering strictly to HJ3’s specifications. After cleaning and priming the surface with HJ3’s primer, exposed rebar in phase two was given a protective zinc coating to avoid flash rusting. A high-modulus paste was then applied to the reinforcement area. The CarbonSeal carbon fiber reinforcement system was fully saturated and applied to the surface, followed by a final layer of high-modulus paste and two topcoats. Brace plates were also used in phase two to prevent post-cure curling of the CarbonSeal fabric.
Sustainability and Cost-Effectiveness: The Results

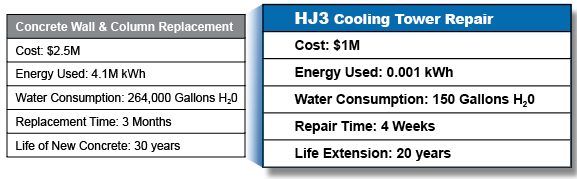

By proactively reinforcing the cooling tower walls and columns, Methanex avoided the need for a complete tower replacement. This reinforced structure is expected to serve another two decades reliably. Once phase three is completed, this reinforcement effort will have collectively prevented five tons of concrete and steel waste, nearly 30,000 tons of CO2 emissions, 4 million kWh of energy consumption, and around 264,000 gallons of water usage compared to a full replacement. HJ3’s intervention not only saved 50% of the costs but also extended the operational lifespan of the Methanex plant, averting an imminent production shutdown within a year after the initial survey.
Elevate the Structural Integrity of Your Facilities
If you're concerned about the structural resilience of your cooling towers or want to explore HJ3's carbon fiber reinforcement solutions further, don’t hesitate to contact our dedicated project managers at [insert contact info].
Below are images showcasing the damaged west wall before repairs (Phase one) and other visuals related to the project.

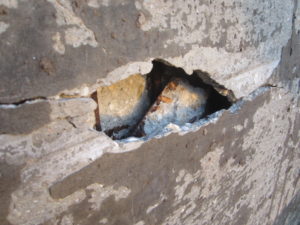

Damaged concrete wall of the Methanex plant, addressed in Phase one.
