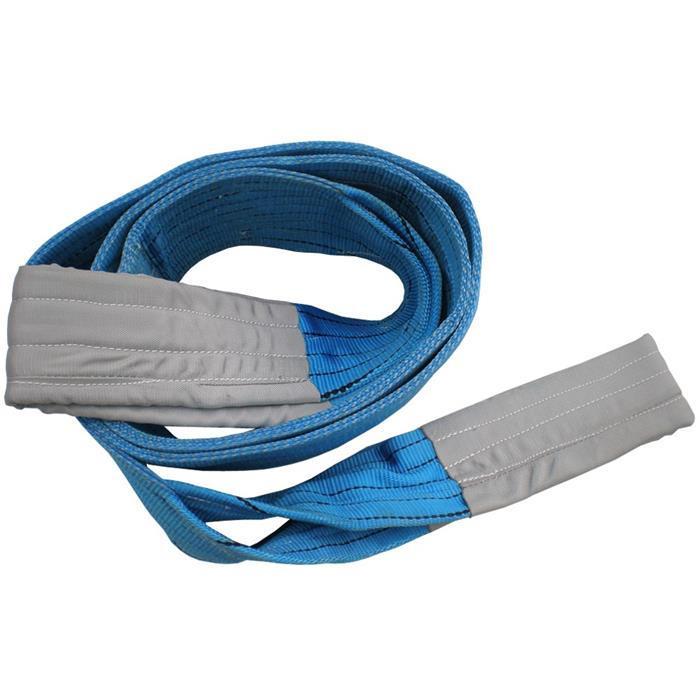

Webbing Sling


The webbing sling include EB type, EB-A type, EB-B type.


The unique characteristic of Webbing sling :

1. Divided into single layer and multi-layer, sewing method is different.

2. The specification can be adjusted according to the customer`s needs.

3.Loading surface is wide ,to reduce the weight at each loading point .

4.No damages to tender objects .

5.Various loading method.

6.High strength/weight ratio.

7.Anti-abrasion and anti-incision protection sleeve can be attached.

8.Has special label ,working load is differentiated by colors according to international standard . Easy to identify even if the sling has been abrased .

9.Light and soft ,can be used in small narrow space .

10. After PU processing , anti-incision is enhanced.

11.Non-conductive ,no danger of electric stroke .

Chin Trade Standard JB/T8521-1997.

13.The elongation of sling <= 7% .

14.The working temperature range:-40℃ - 100℃ .



Description:

The load scope of webbing sling is 0-30 tons and its length is 1-100m.

Webbing sling is made of 100% PES through weaving and suturing which adopts reinforced ring and metallic fittings on its both ends to enhance its strength.

Adopting different suturing methods, webbing sling is woven by loom. It is divided into single layer and double layer.

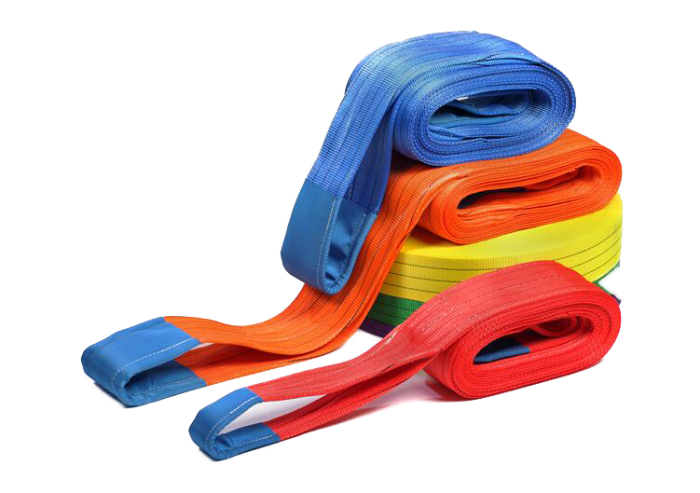

Besides color ,webbing sling`s standard tonnage can also be distinguished according to its width .With broad and smooth loading surface ,it is suitable for lifting soft surface object .It can hardly damage the paint surface of lifted metal object .

Webbing sling has excellent protection. In general use ,our webbing sling has long lifespan due to its superiority. But while lifting ,it must be equipped with protecting jacket to avoid damage by sharp weapon or lifted object .


Flat Webbing Sling Features:

1. Easy to use, efficient in operation, gentle on surface contact.

2. Come with a label giving length and tonnage.

3. Inner core is made from high tensile polyester fiber

4. The core is protected by a tough woven tubular sleeve also made from polyester without side stitch.

5. The safe working load is clearly and continuous printed on the sleeve.

6. Low elongation, extremely wear-resistant.


4. The core is protected by a tough woven tubular sleeve also made from polyester without side stitch.

5. The safe working load is clearly and continuous printed on the sleeve.


Parameters of EB webbing sling

Max.SWL=Mode Coeffcient P×Working Load Limit Max.SWL of lifting method


Code


Color

Single Max .Working Load Limit

t-Legs Max.Working Load Limit

Approx
Width
(mm)

Min
length
(m)


Max
Length
(m)

Upright


Choked

β


Upright
45°


Choked
45°


Upright
45°-60°

Choked
45°-60°

0°-7°

7°-45°

45°-60°

45°











1.0

0.8

2.0

1.4

1.0

0.7

1.4

1.12

1.0

0.8

5:1 6:1 7:1

EB-01

Purple

1000

800

2000

1400

1000

700

1400

1120

1000

800

25 25 30

1

100

EB-02

Green

2000

1600

4000

2800

2000

1400

2800

2240

2000

1600

50 50 60

1

100

EB-03

yellow

3000

2400

6000

4200

3000

2100

4200

3360

3000

2400

75 75 90

1

100

EB-04

grey

4000

3200

8000

5600

4000

2800

5600

4480

4000

3200

100 100 120

1

100

EB-05

red

5000

4000

10000

7000

5000

3500

7000

5600

5000

4000

125 125 150

1

100

EB-06

brown

6000

4800

12000

8400

6000

4200

8400

6720

6000

4800

150 150 180

1

100

EB-08

blue

8000

6400

16000

11200

8000

5600

11200

8960

8000

6400

200 200 240

1

100

EB-10

Orange

10000

8000

20000

14000

10000

7000

14000

11200

10000

8000

250 250 300

1

100

EB-12

Orange

12000

9600

24000

16800

12000

8400

16800

13440

12000

9600

300 300 300

3

100

EB-15

Blue

15000

12000

40000

28000

15000

14000

28000

22400

15000

12000

200 200 240

3

100

EB-20

Orange

20000

16000

60000

42000

20000

21000

42000

33600

20000

16000

250 250 300

3

100

EB-25

Orange

25000

20000

50000

35000

25000

17500

35000

28000

25000

20000

300 300 300

3

100

EB-30

Orange

30000

24000

60000

42000

30000

21000

42000

33600

30000

24000

300 300 300

3

100

EB-40

Orange

40000

32000

80000

56000

40000

28000

56000

44800

40000

32000


3

100

EB-50

Orange

50000

40000

100000

70000

50000

35000

70000

56000

50000

40000


3

100



WARNING:

1.The slings should avoid the harm of the sharp instrument when lifting the goods.

2.You can add the leather or polyester on the outer layer of the slings to protect it when lifting the goods .

3.Never use slings with damages or defects.

4.Only use slings with clear identifications.

5.Forbidden to tie a knot of the sling or link with a knot. You should link the sling with the right connecting piece.

6.Before use, check working load limit, length and working position.

7.Never use slings under -40°C Or more than 100°C .

8.Elongation rate <3% at working load <10% at breaking load.
